Model L50M/ L50MU
Low Profile Series - Model L50M - 2" fork lowered height
Model No. |
Capacity (lbs.) |
Frame width (in.) |
Fork length (in.) |
Fork width (in.) |
Weight (lbs.) |
|
L50M-1 |
5,000 | 27 | 36 | 6 | 155 |
|
L50M-2 |
5,000 | 27 | 42 | 6 | 165 |
|
L50M-3 |
5,000 | 27 | 48 | 6 | 175 |
|
L50M-10 |
5,000 | 20.5 | 36 | 6 | 150 |
|
L50M-11 |
5,000 | 20.5 | 42 | 6 | 155 |
|
L50M-12 |
5,000 | 20.5 | 48 | 6 | 160 |
Ultra Low Profile Series - Model L50MU - 1 3/4" fork lowered height
Model No. |
Capacity (lbs.) |
Frame width (in.) |
Fork length (in.) |
Fork width (in.) |
Weight (lbs.) |
|
L50MU-1 |
5,000 | 27 | 36 | 6 | 155 |
|
L50MU-2 |
5,000 | 27 | 42 | 6 | 165 |
|
L50MU-3 |
5,000 | 27 | 48 | 6 | 175 |
|
L50MU-10 |
5,000 | 20.5 | 36 | 6 | 150 |
|
L50MU-11 |
5,000 | 20.5 | 42 | 6 | 155 |
|
L50MU-12 |
5,000 | 20.5 | 48 | 6 | 160 |
Benefits
-

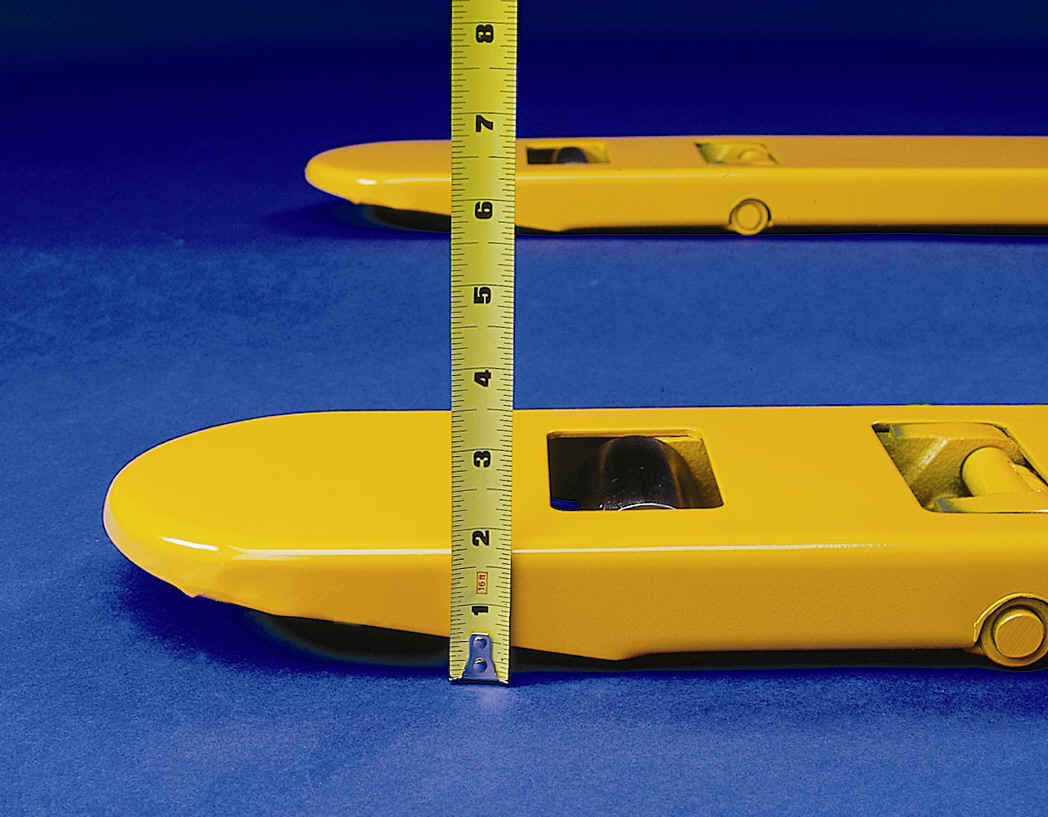

Low fork profile
A precise design of rigid forming combined with 2" or 1 3/4" lowered fork height gives the operator more pallet handling diversity. -

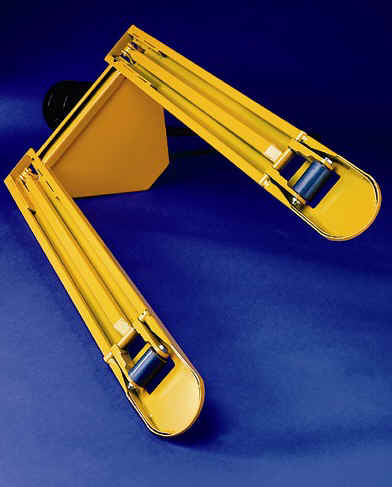

Durable steel rollers
Tough steel load rollers provide the necessary load capacity and durability for long life. -

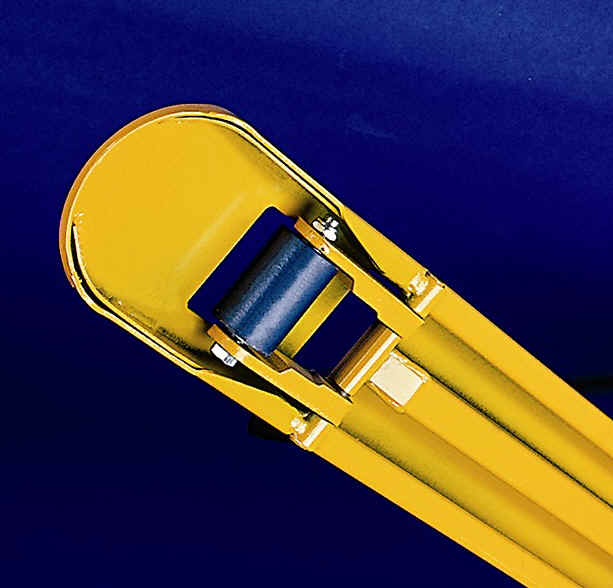

Effortless Pallet Entry/ Exit
Formed slide fork tips and exit rollers provide smooth load roller transition over pallet bottom boards. -
Adjustable push-bars
Maintain optimum rolling and prolong service life of the truck as it ages by altering the fork lowered height.Click on image for full size
